Predictive Refrigerant Leak Modelling in VRF Systems

ML-Based Refrigerant Leak Detection in VRF HVAC Systems

Context and Motivation

Variable refrigerant flow (VRF) systems offer high efficiency but their distributed piping makes refrigerant leaks hard to detect. Traditional methods, such as installing pressure sensors at every branch, are invasive, costly, and can introduce new leak points. We partnered with a clean energy consultant and a state energy authority to build a non-intrusive, data-driven solution.

Challenge

A commercial facility’s VRF system logs hundreds of diagnostic parameters across five indoor units and a shared outdoor unit. Key questions:

• Which signals indicate the early stages of a leak?
• How do we distinguish natural operating variation from actual refrigerant loss?
• Can we achieve real-time detection without adding sensors?

Approach

Data exploration and feature selection

• Applied principal component analysis to reduce 200+ parameters to a handful of principal components

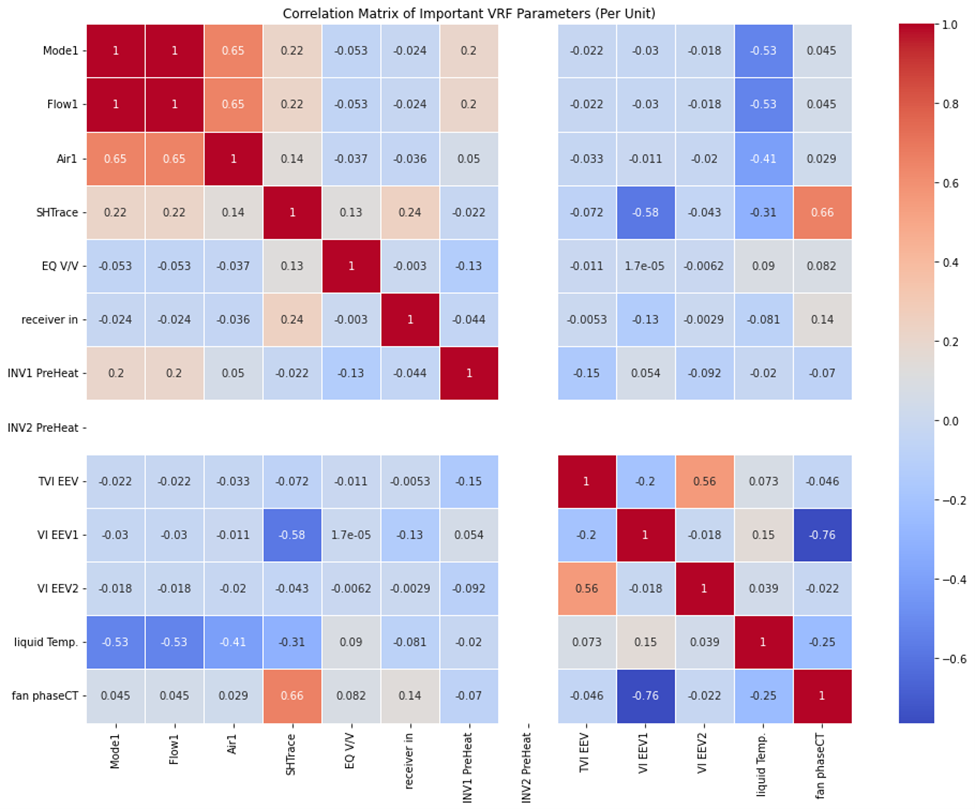

• Ran pairwise correlation analysis to confirm which raw signals drive those components

Model development

• Built a baseline model for normal operation
• Simulated under-charge (10–20 percent refrigerant loss) scenarios

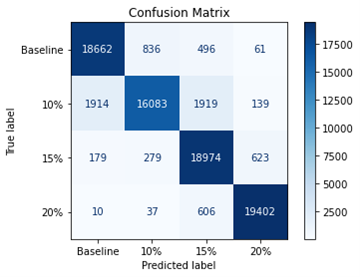

• Trained a fully connected neural network to classify normal vs. under-charged states

Results

• Achieved over 95 percent recall on under-charge events
• Maintained false-alarm rate below 5 percent
• Demonstrated real-time inference capability on edge devices

Impact and Next Steps

• Enabled proactive maintenance without new hardware
• Integrated into a demo application for regulatory reporting
• Next steps: fine-tune thresholds per site, expand to multi-facility deployments

My Role

• Led end-to-end modeling pipeline
• Engineered preprocessing and feature selection workflows
• Designed, trained, and validated the neural network
• Co-authored demo application supporting preventive maintenance
